Non-Contact Uniaxial Vector Extensometer – Vector U200
Description
The Non-Contact Uniaxial Vector Extensometer is designed to accurately measure strains in metal and polymer samples in tensile-compression tests.
- Extensometer Measurement Application: Uniaxial; Tension, Compression, or Flexure
- Measurement Modes: Strain (%) or Displacement (mm/in)
- Field of View: Cuboid 200 H x 100 D x 40 W mm
- Resolution: <0.5 μm
- Extensometer Accuracy Class: Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1.
- Gauge lengths supported: 25 to 180 millimeters
- Real-time tension data rate: 150 Hz
- Minimum sample width: 5 mm flat, 6 mm round
- Recommended minimum parallel sample section: 32 millimeters
- Maximum tracking speed: 2500 mm/min
- Tension control: Complies with ISO 6892 and ASTM E8 standards
- Operating distance: 250 to 350 millimeters
- Tension output interface*: Analog: ±10 V BNC
Digital: RS232 serial 15-pin D-sub - Supported mark types**: Rings, filled circles, and speckles automatically detected
- Recommended sample temperature range: -30 to +300 °C
- Dimensions: 252 H x 73 D x 201 W mm
- Weight (vector module only): 3.1 kilograms
- Metals and Alloys
- Polymers
- Composites
ASTM E8 y E8M, ASTM E21, ISO 6892-1 y 6892-2

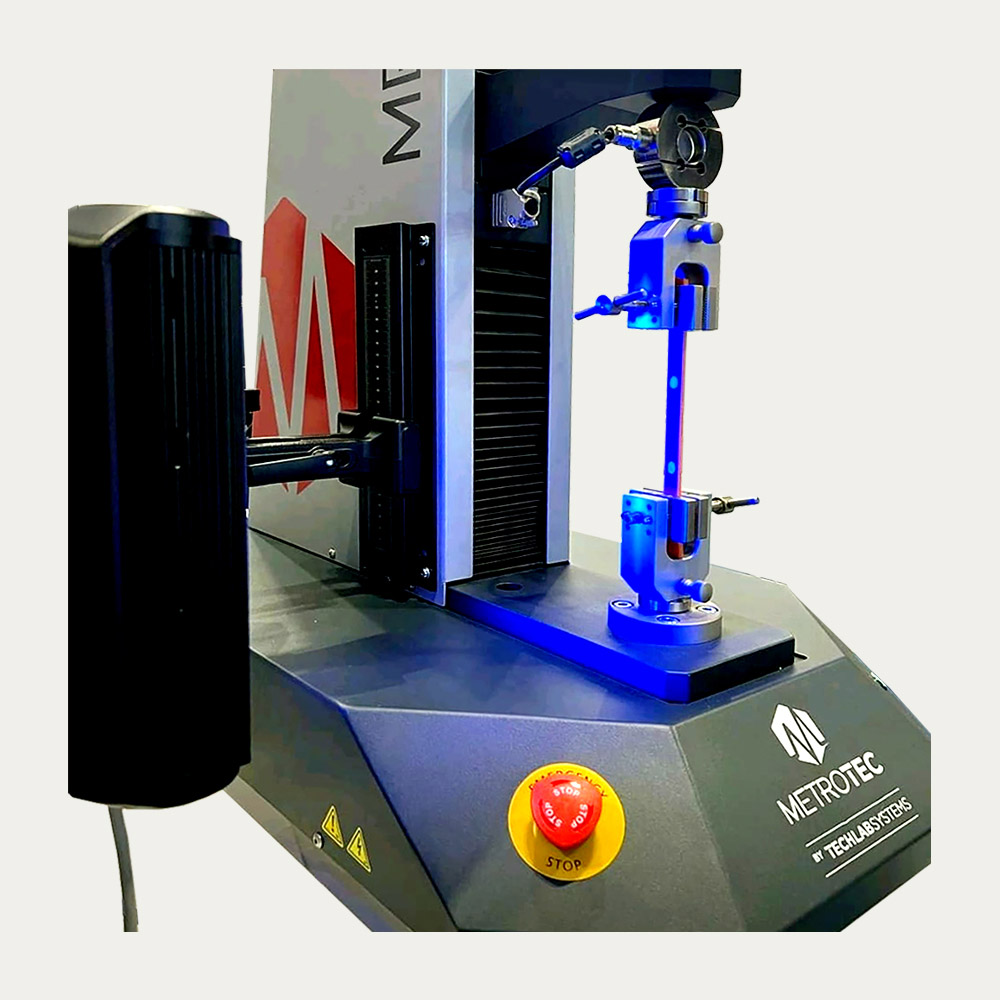

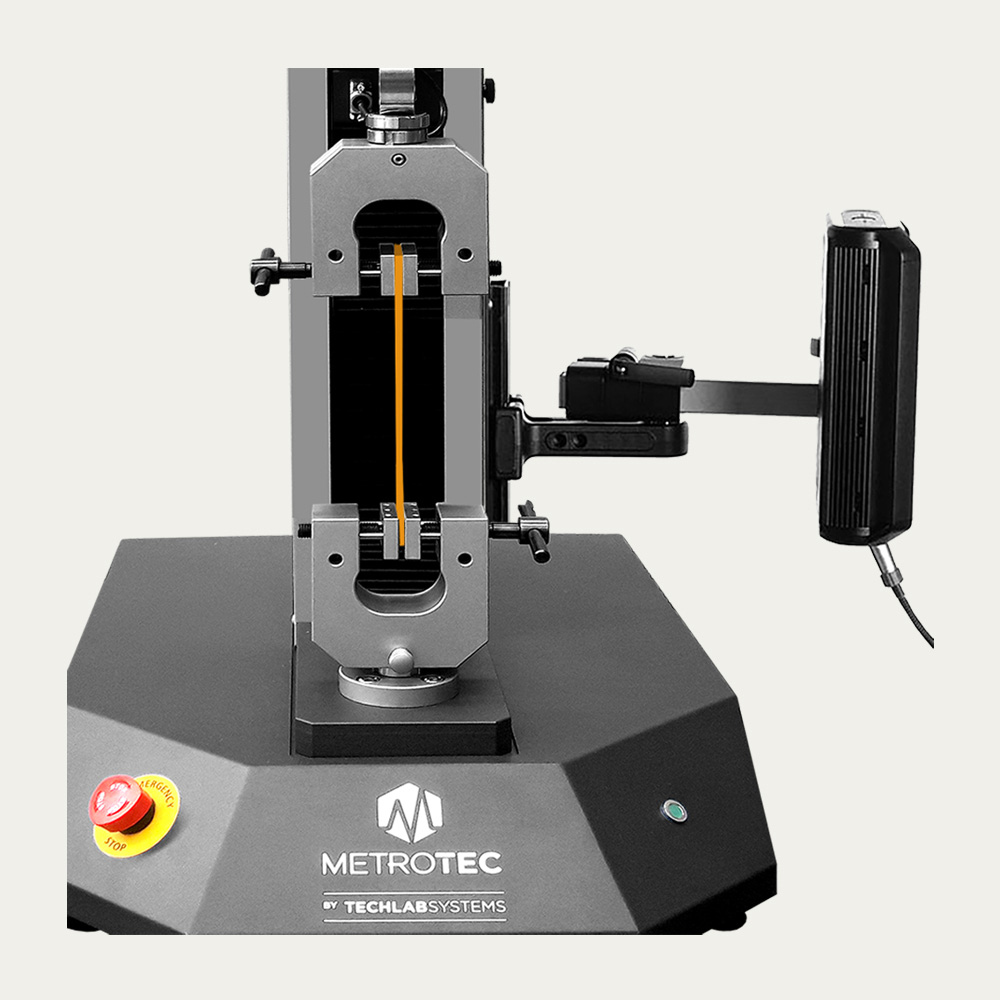

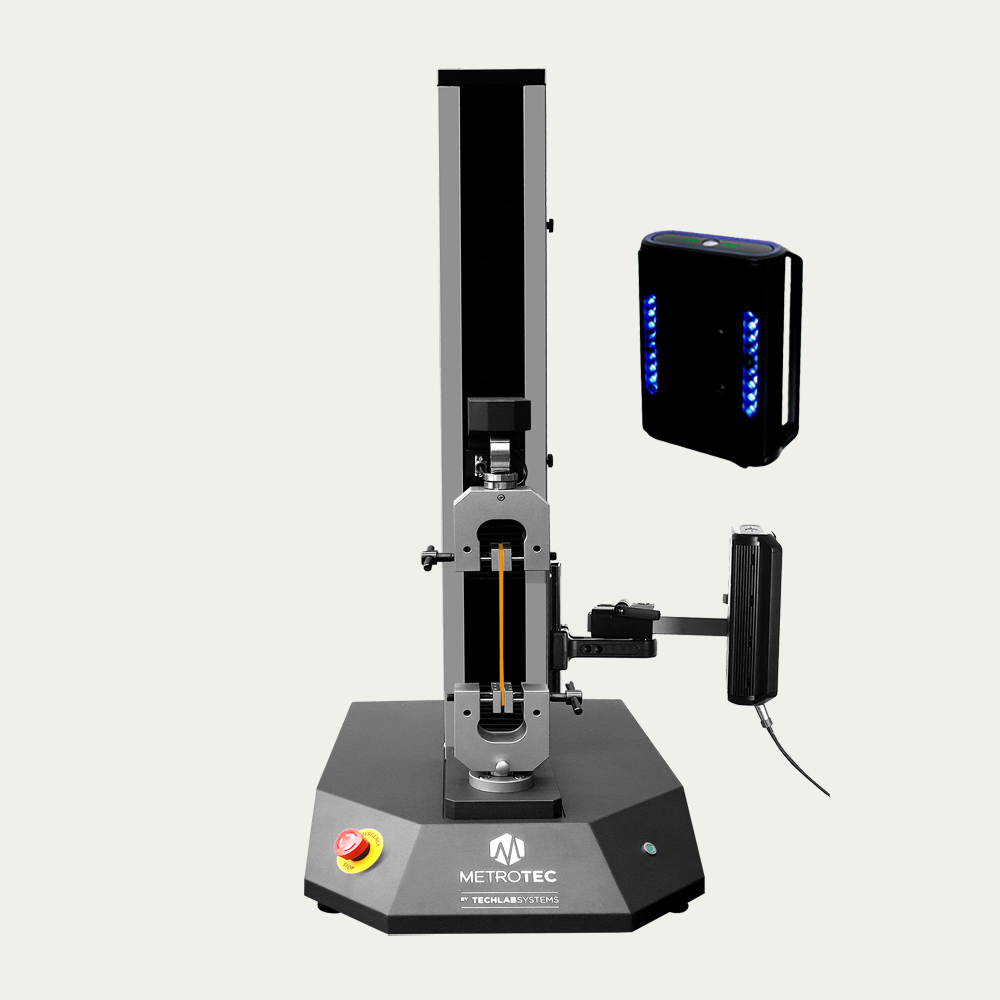

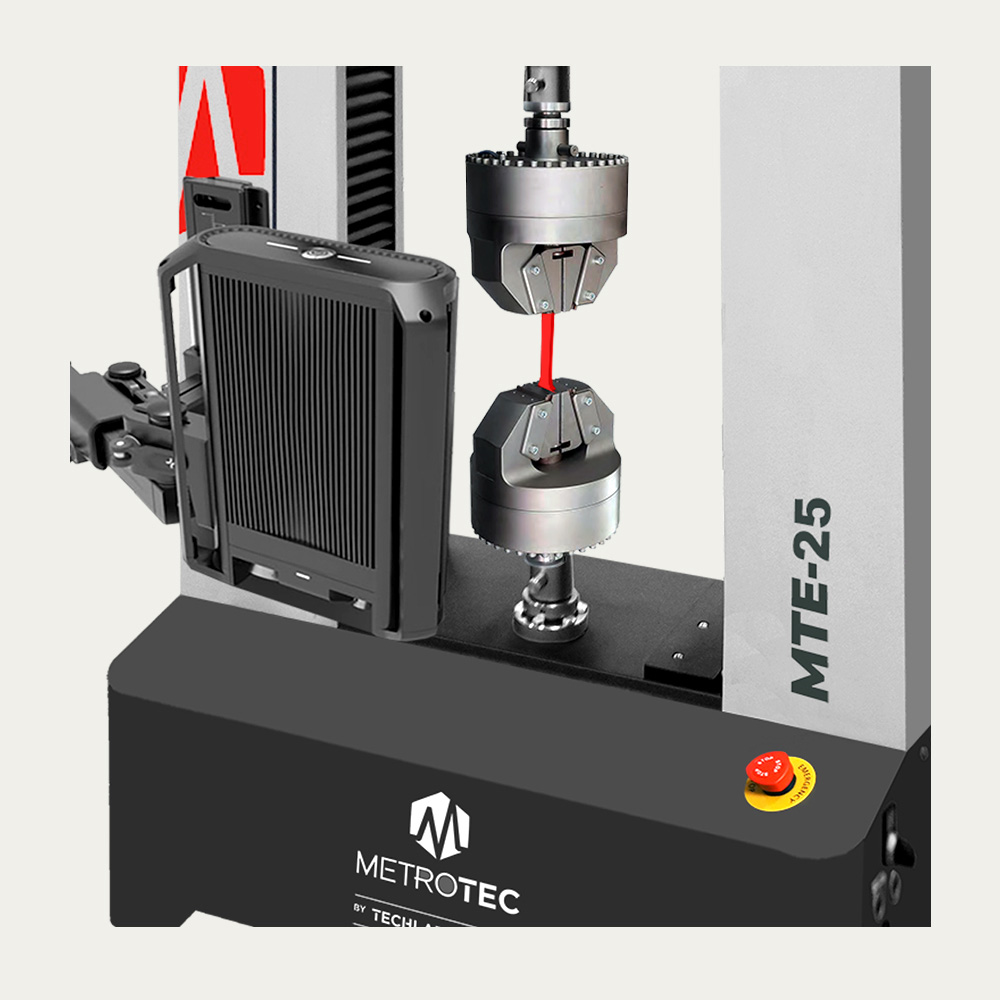

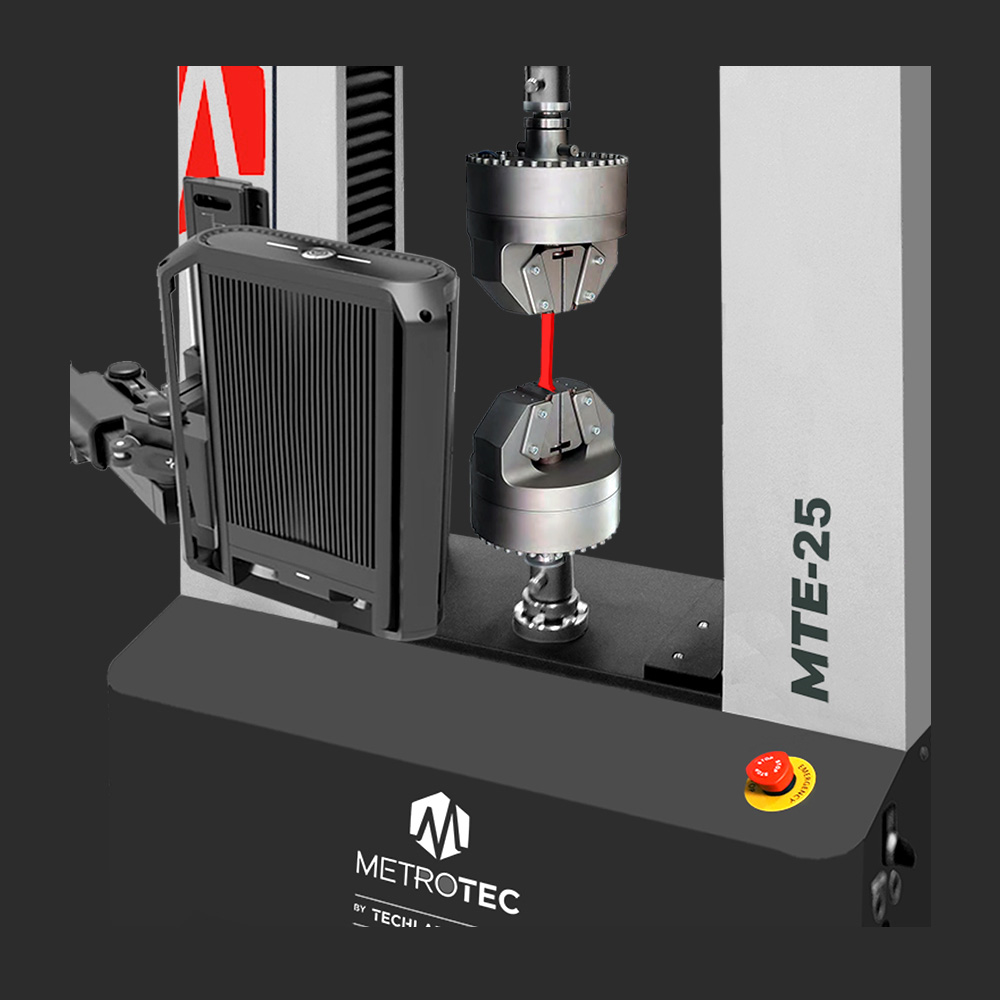

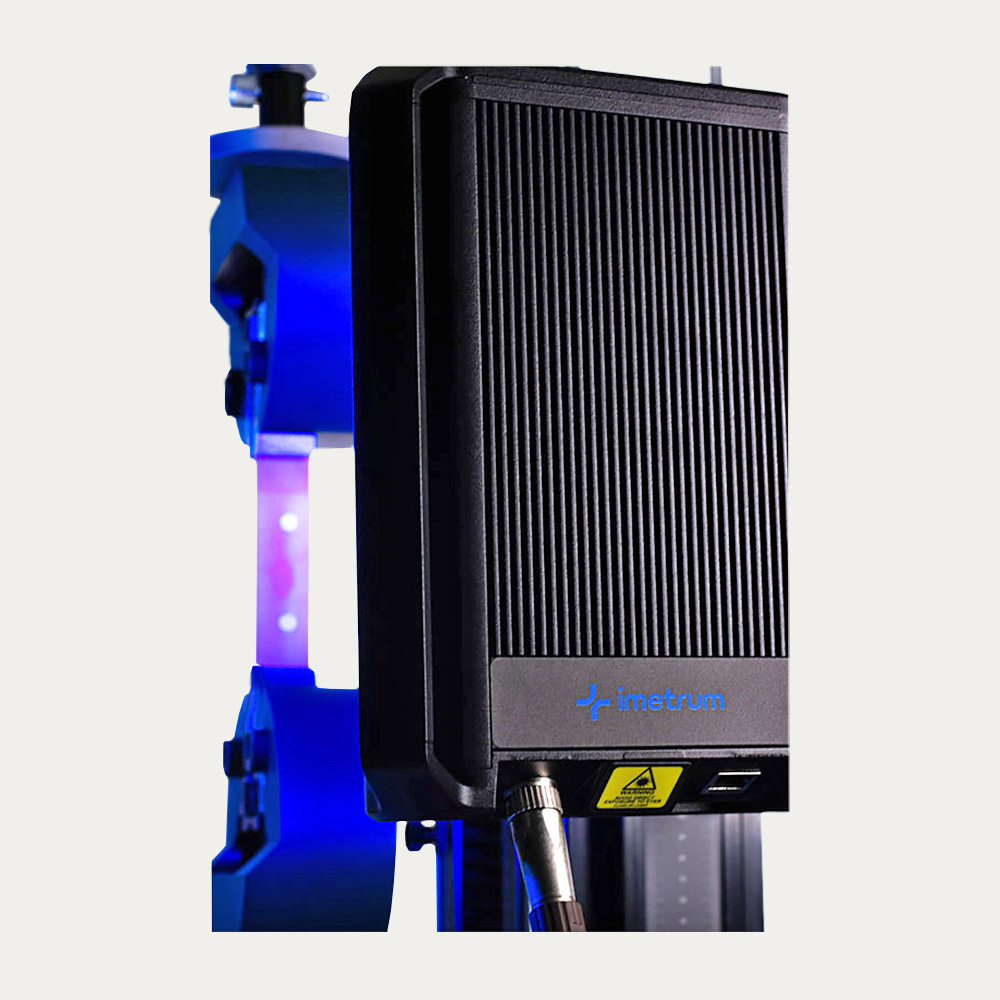

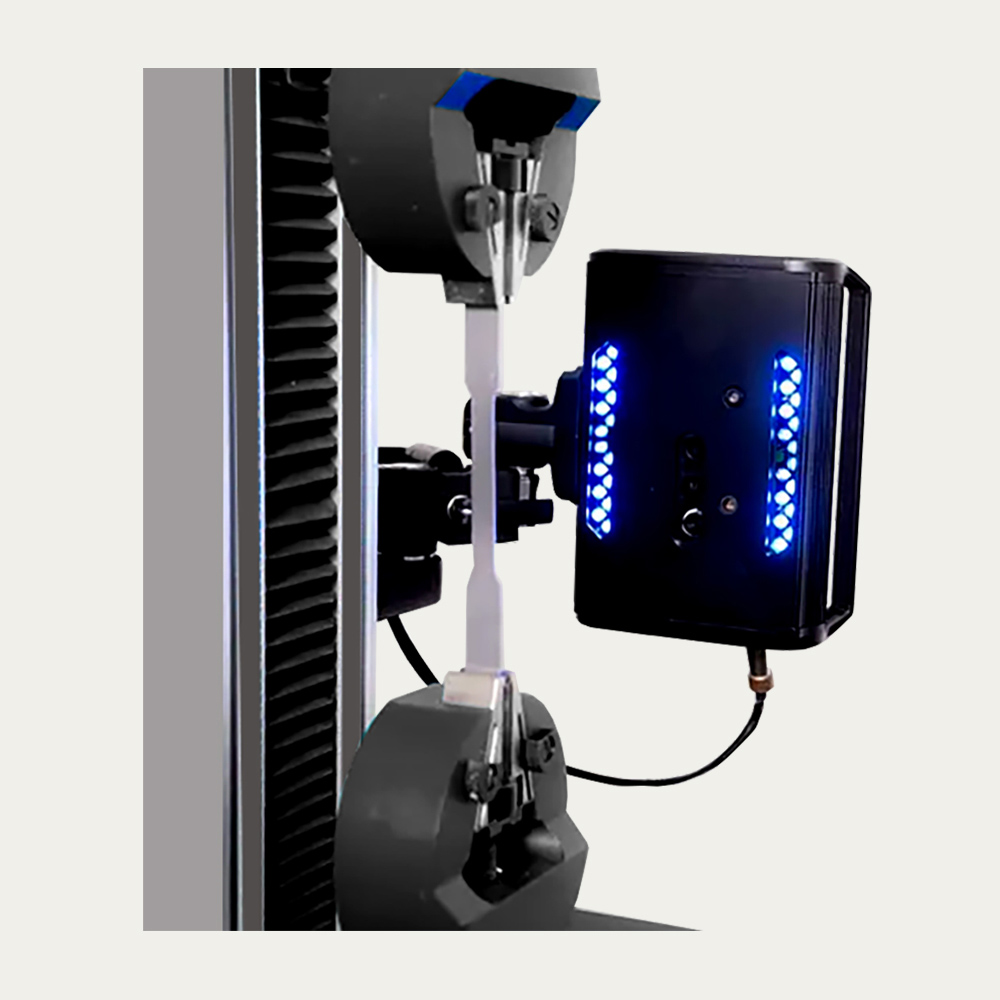

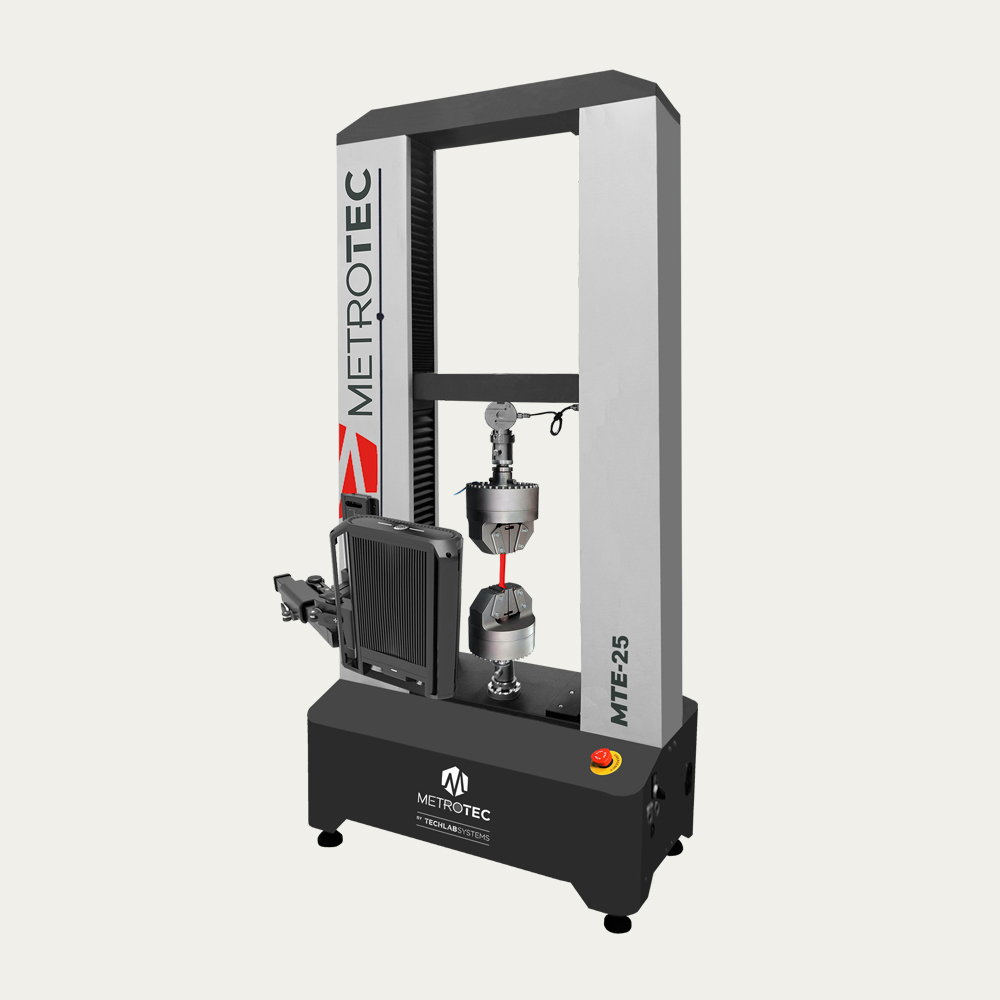

Gallery
