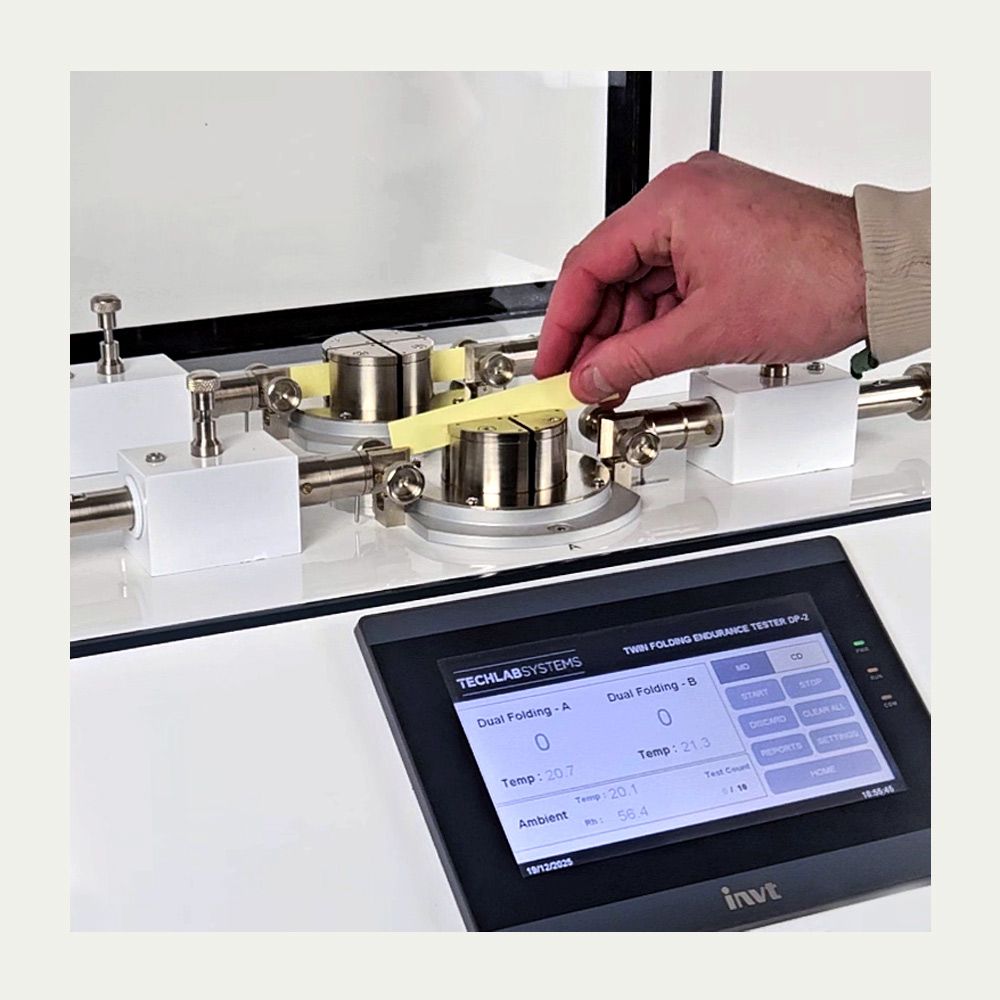

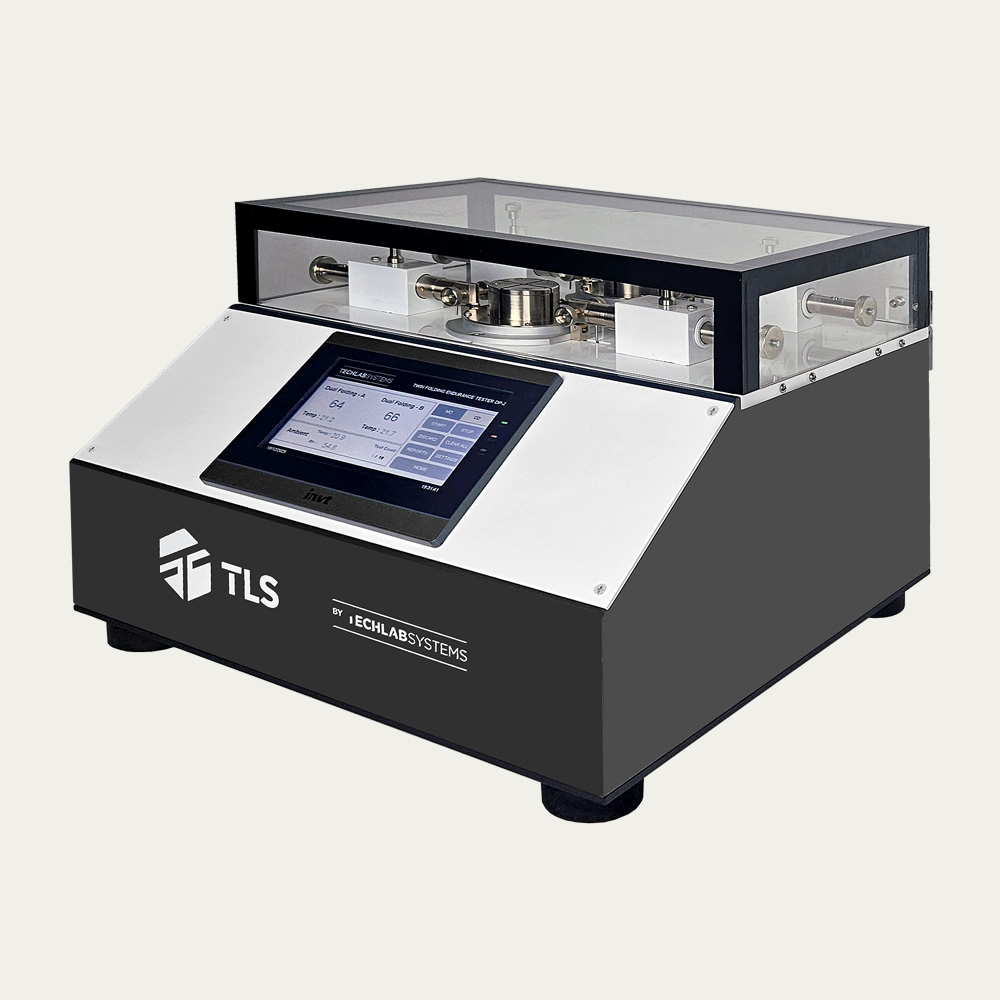

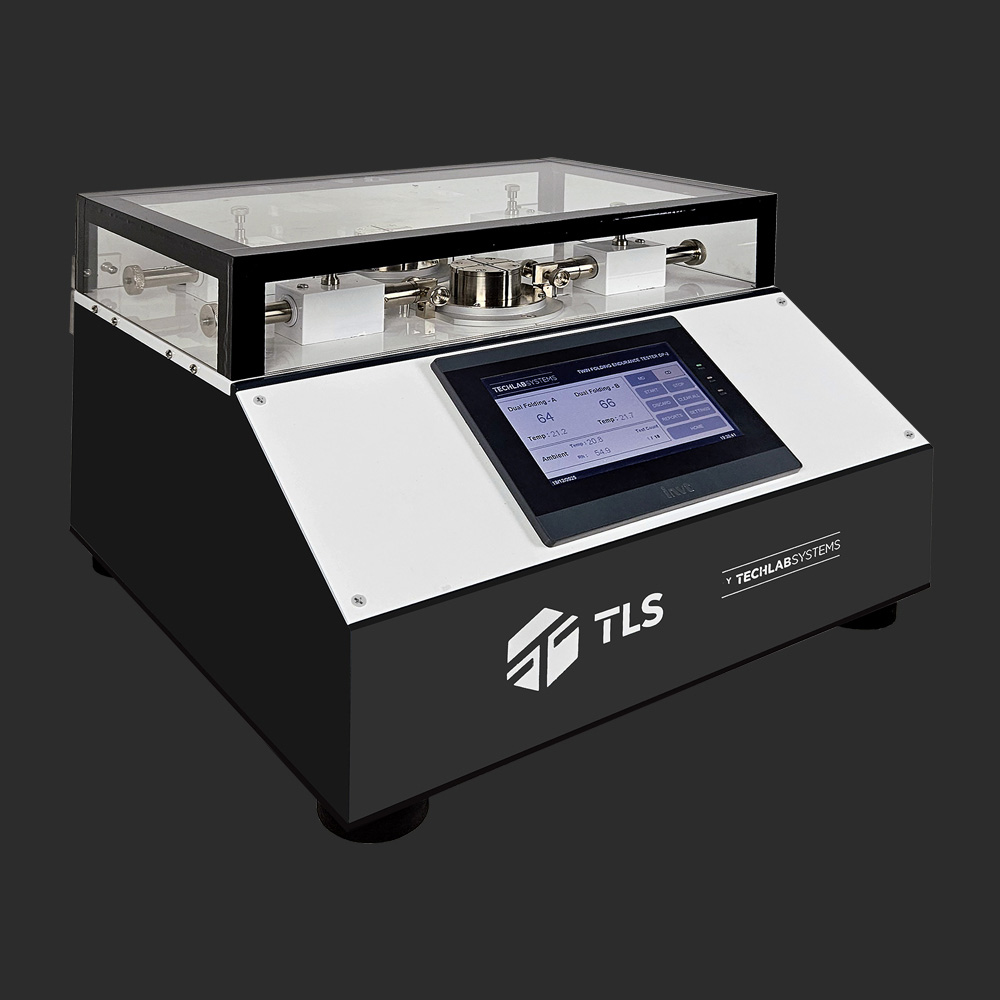

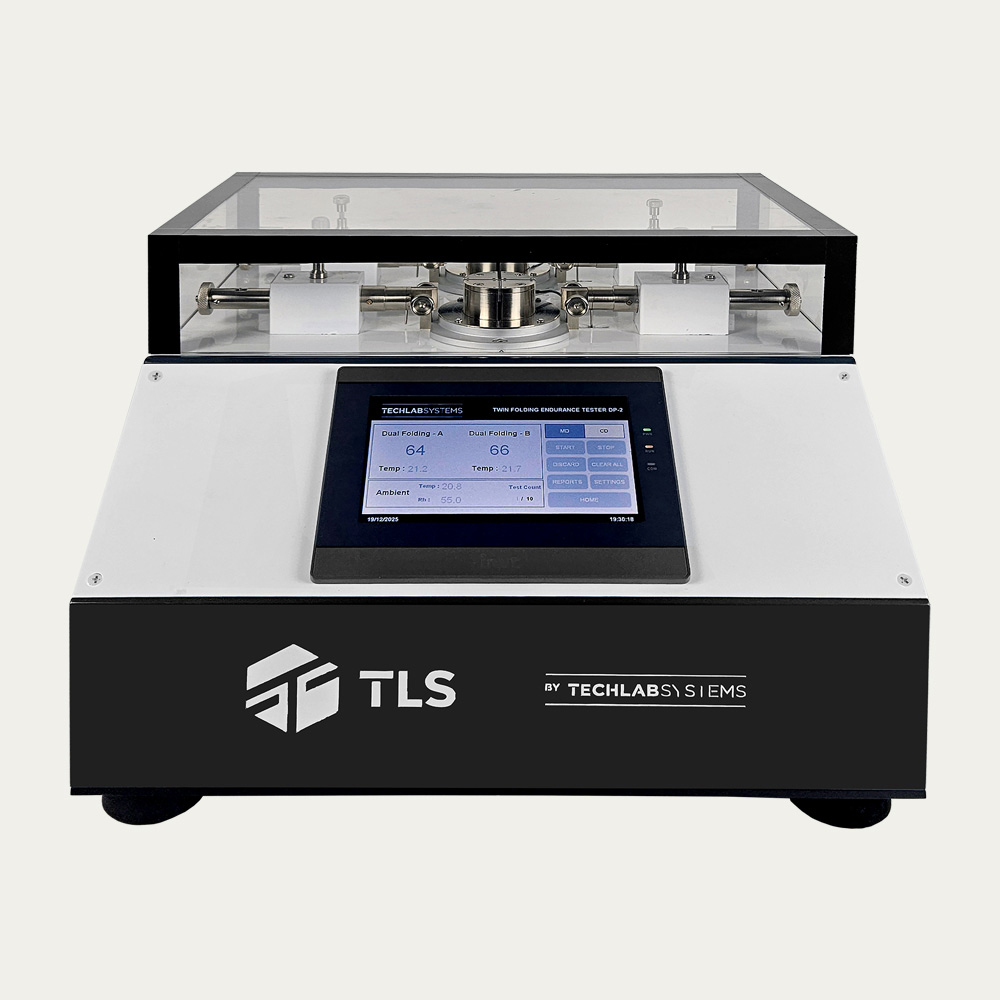

Twing Folding Endurance Tester Schopper method PD-2 model
Description
The device is designed to determine the double-fold strength of high-strength papers up to 0.25 mm thick using the Schopper method. It is especially recommended for security papers and banknotes where there is a direct correlation between double-fold strength and the paper's actual strength.

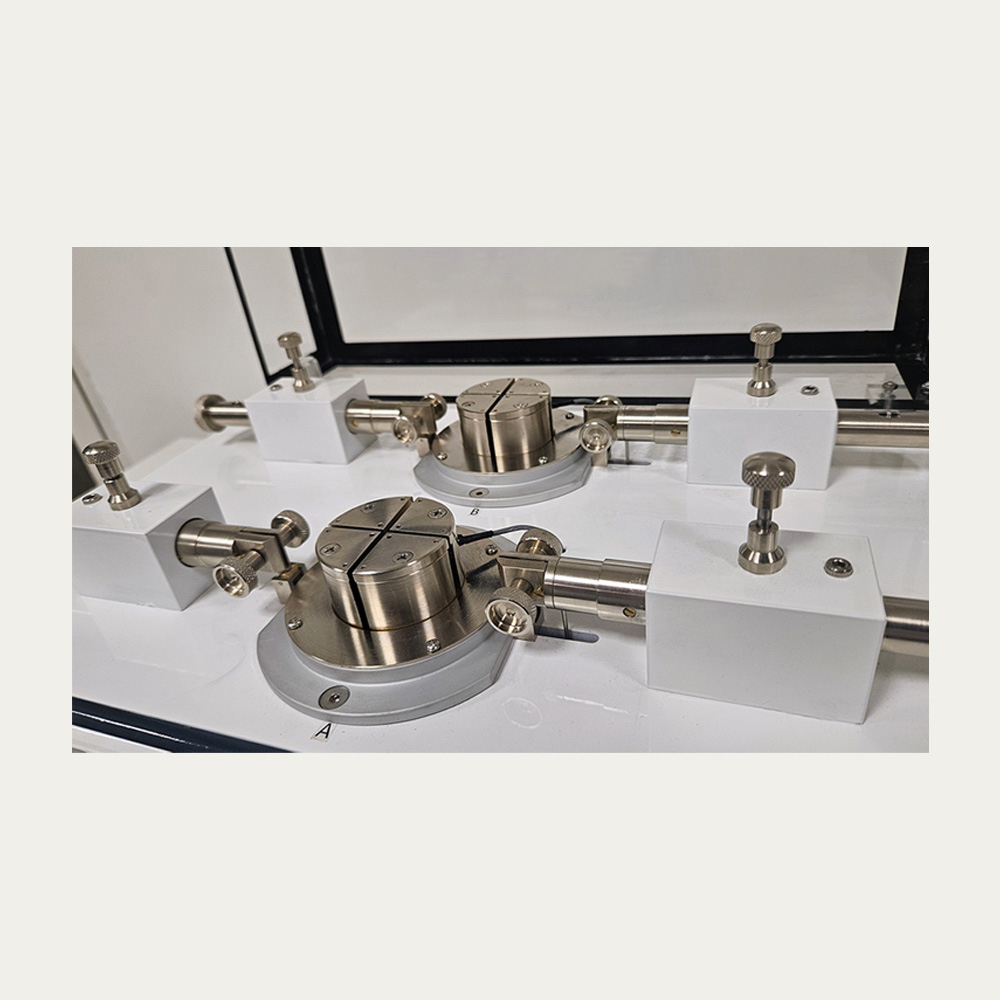

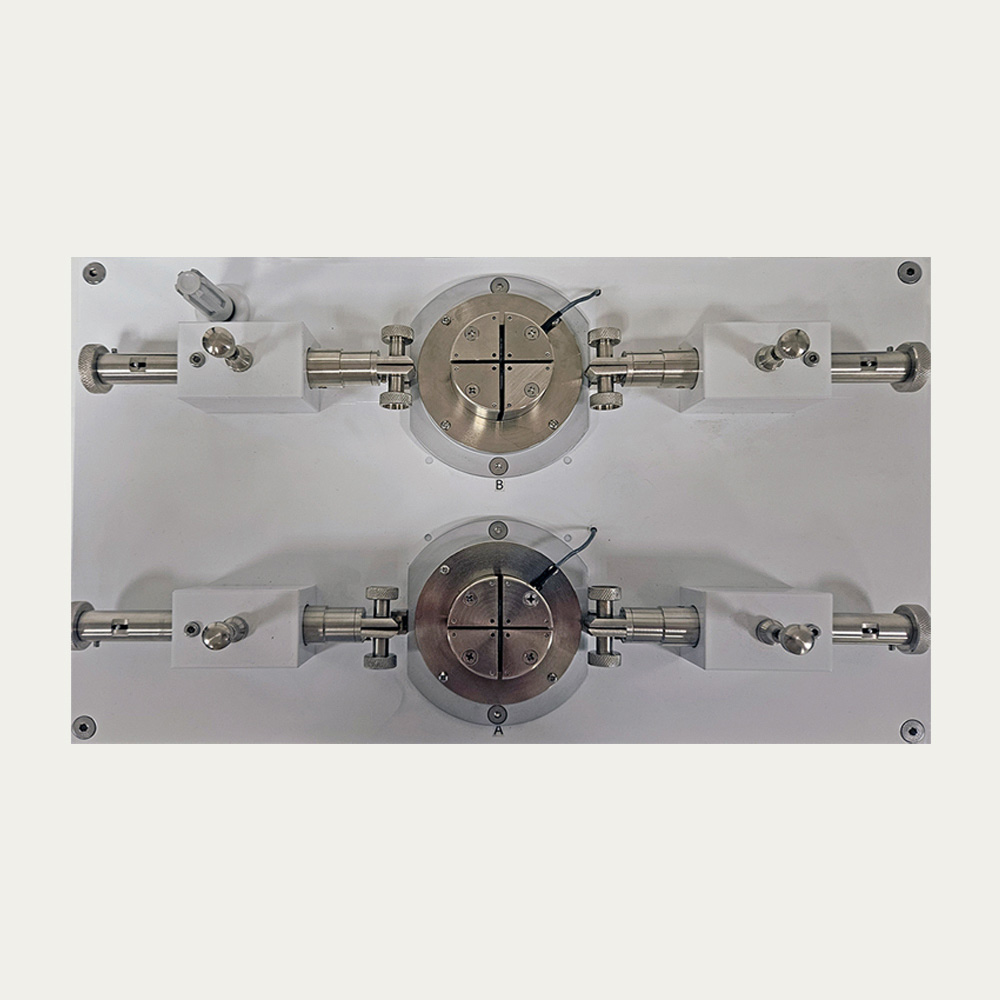

- Simultaneous test meter with double head.
- Sample thickness: 0.05 to 0.25 mm
- Standard instrument for security paper.
- Normalized spring force: min 7.55N / Max 9.81N
- Test length: 90 mm
- Specimen length: 100 mm
- Specimen width: 15 mm
- Schopper method with speed: 115 ± 10 folds/min.
- Temperature Sensor to detect temperature increases in samples.
- Color touchscreen with full statistics

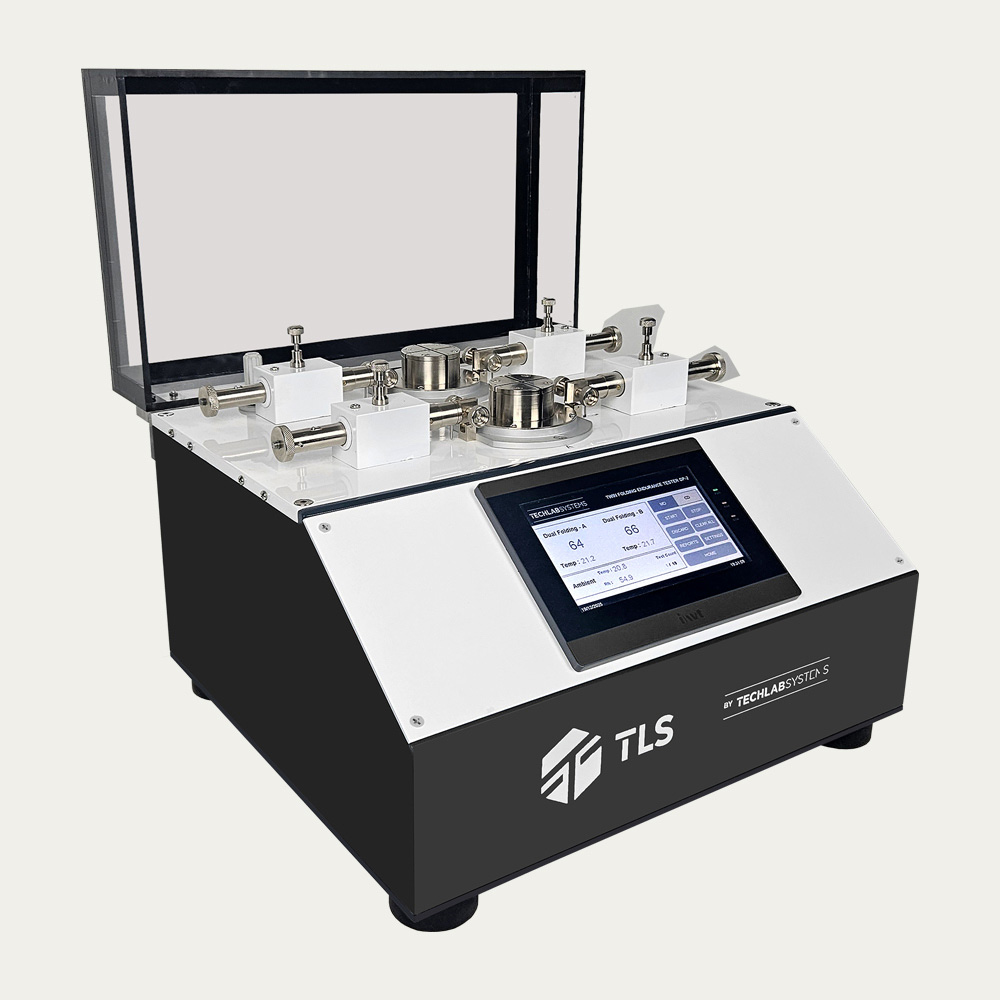

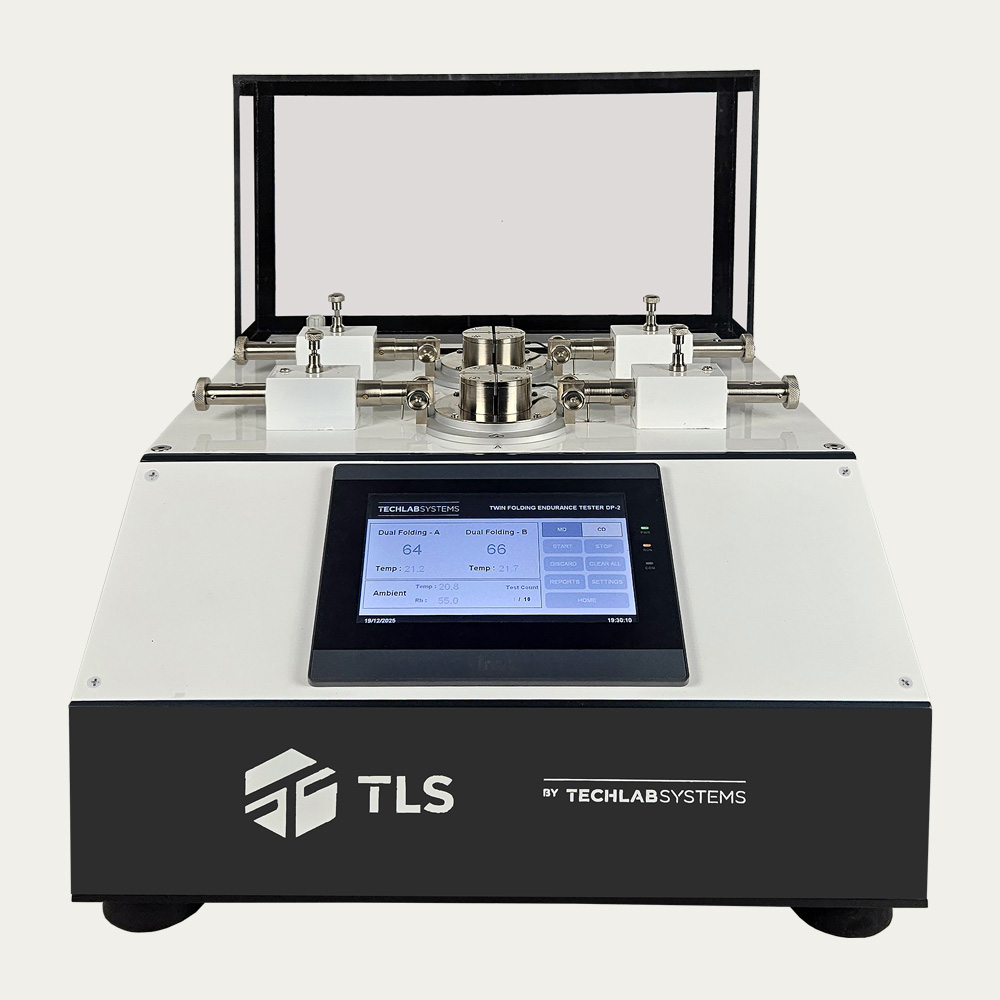

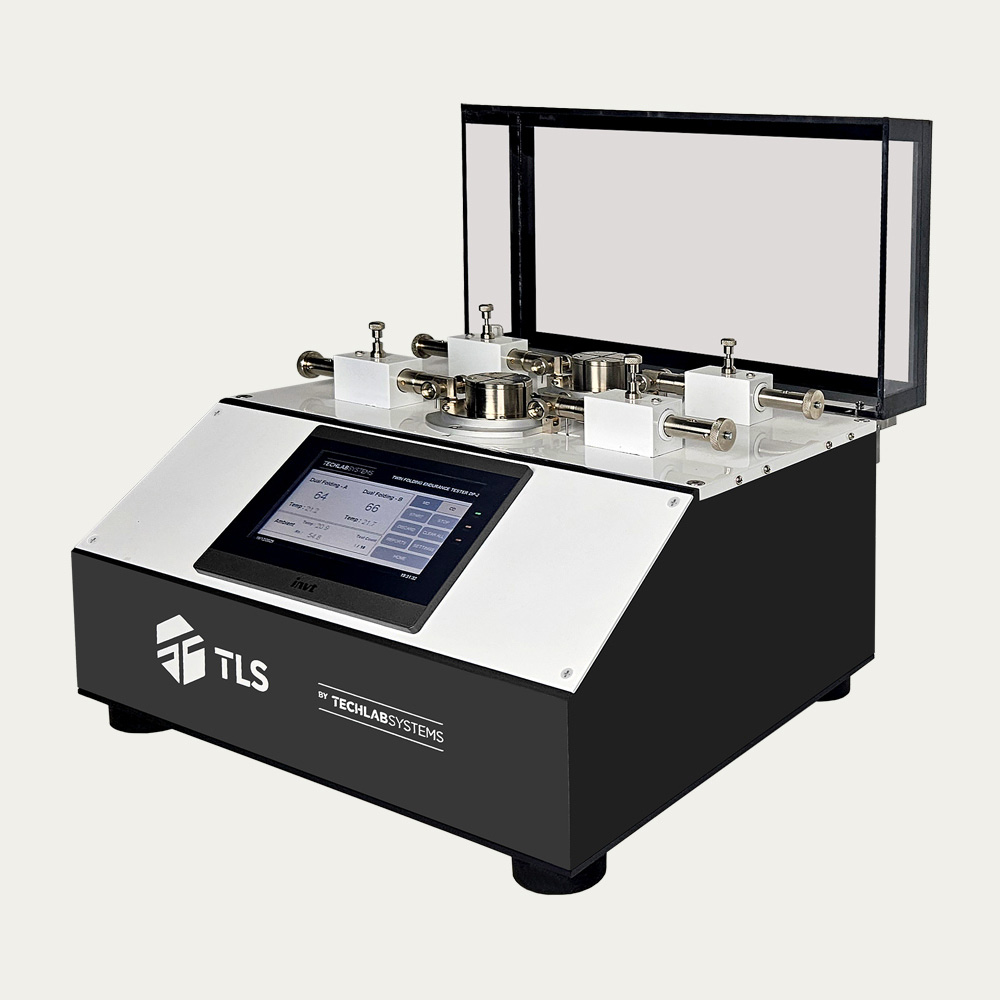

- Equipment dimensions: 450 x 400 x 455 mm (main unit with lid)
- Approximate Packaging Dimensions: 650 x 600 x 600 mm
- Net Weight: 35 Kg
- Approximate gross weight: 60 Kg
- Electrical Current: 220V-50Hz or 110V-60Hz
- CE marking
- Security Paper
- Paper Money
ISO 5626 – TAPPI T423 – SCAN P17
